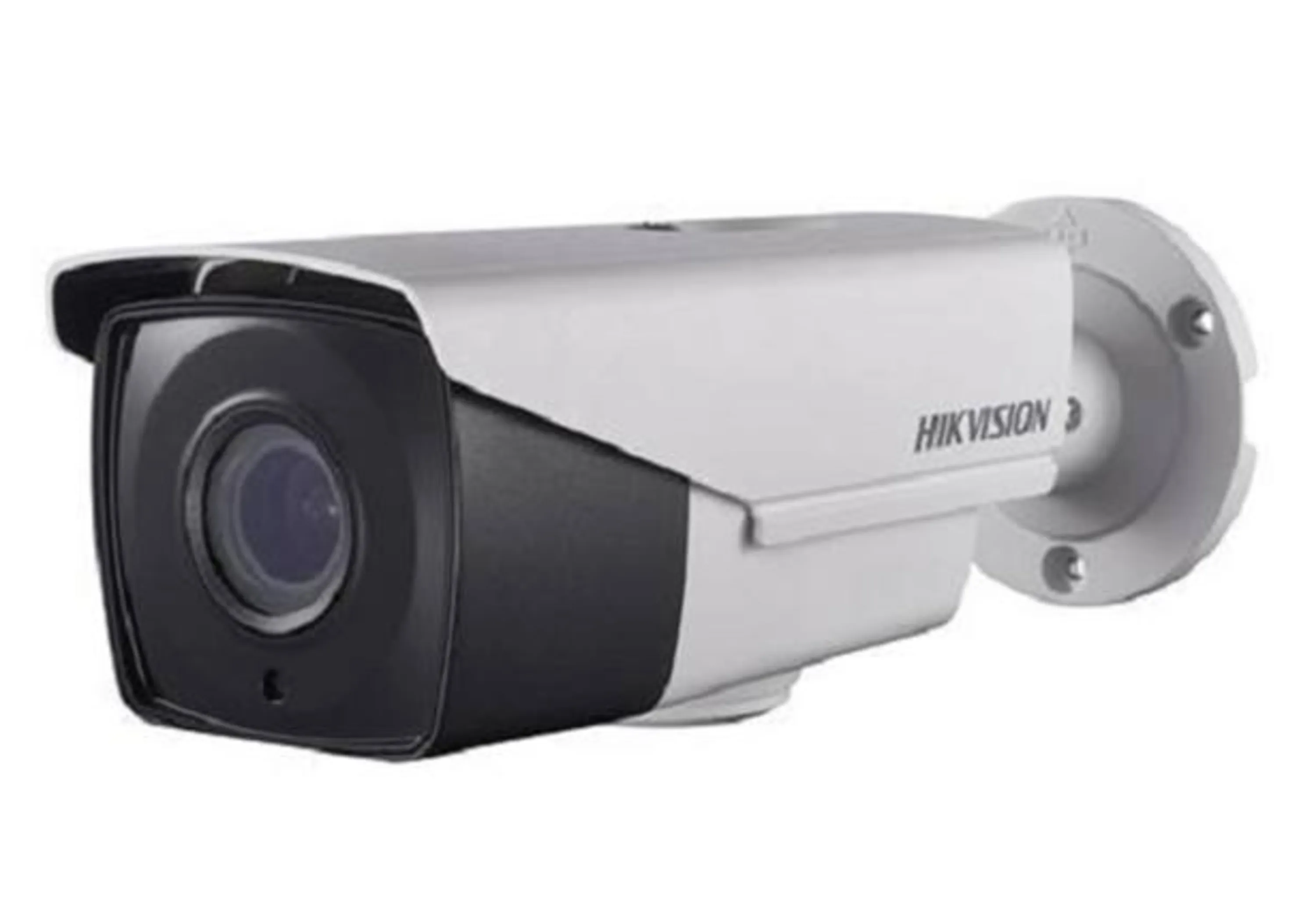

Camera DS-2CE16D8T-IT3E
Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1920(H)*1080(V)
Min. Illumination: Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120dB
Video Frame Rate: 1080p@25fps/1080p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
Menu
D/N Mode: Auto / Color / B/W
Auto White Balance: Auto/MWB
BLC: Support
AGC: Support
Language: English/Chinese
Function: Brightness, Sharpness, Mirror, Smart IR
General
Operating Conditions:
-40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±25%/PoC.af
Power Consumption: Max. 4 W
Weather Proof: IP67
IR Range: Up to 40m
Communication : Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension: 86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″)
Weight: Approx. 680g (1.5lb)
