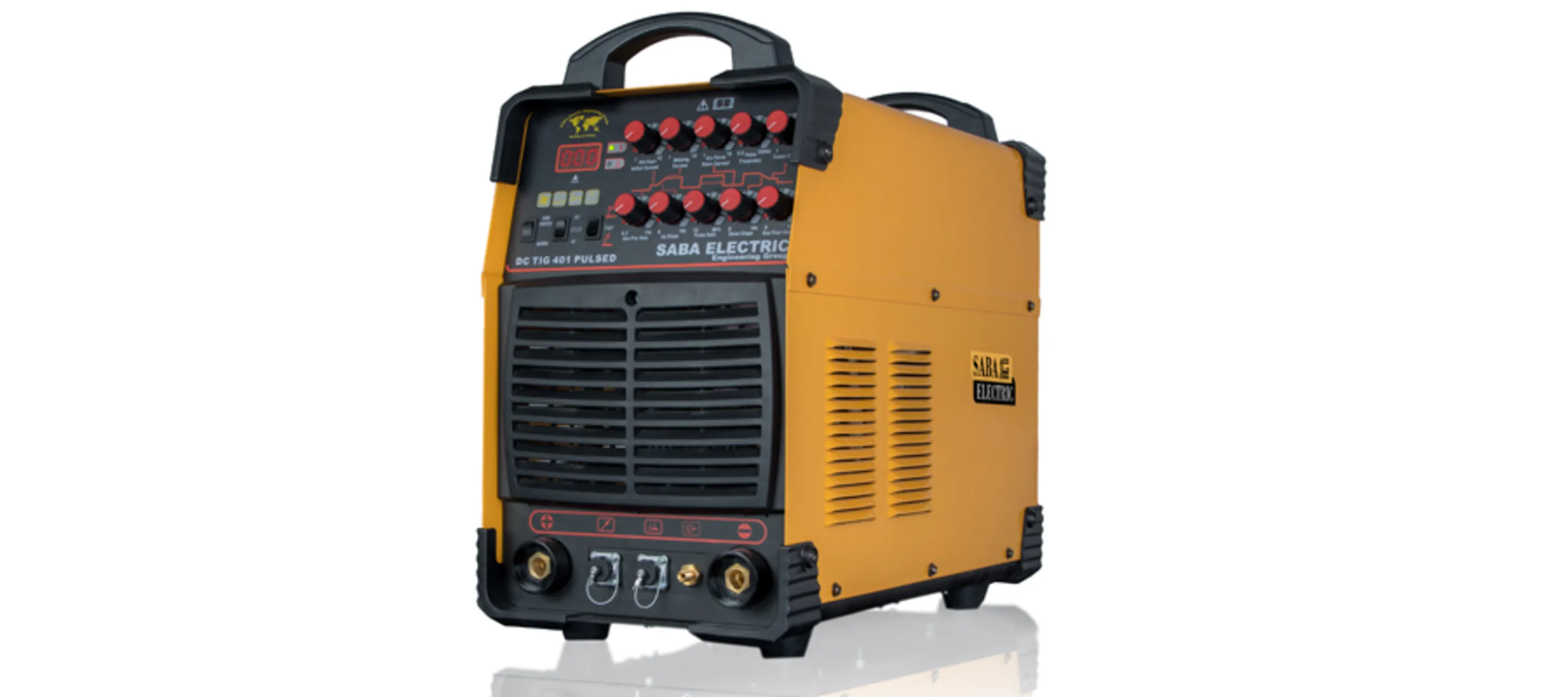

تیگ - ابخنکDC TIG 401 PULSE
برای مشاهده محصولات اینورتر جوشکاری مشابه کلیک کنید
Product model | ابخنکDC TIG 401 pulse |
PRODUCT CODE | 3030101400 |
INPUT POWER | 3-phase AC380V±15% - 50Hz/60Hz |
OUTPUT RANGE | 10-400A - 10.4-26V |
Input Current @Max Output | 22A |
DUTY CYCLE@40°c | 400A 35% |
EFFICIENCY | 85% |
NET WEIGHT | 30kg |
DIMENSION (L*W*H) | 59.2*29.7*52.8mm |
INSULATION CLASS | F |
PROTECTION CLASS | IP21S |
RATED INPUT CAPACITY | 18.8 KVA |
NO LOAD VOLTAGE | 66 VDC |
ARC FORCE CURRENT RANGE | 0-200A |
POST-FLOW TIME | 0-15s |
PULSE FREQUENCY | 0.2-200 Hz |
